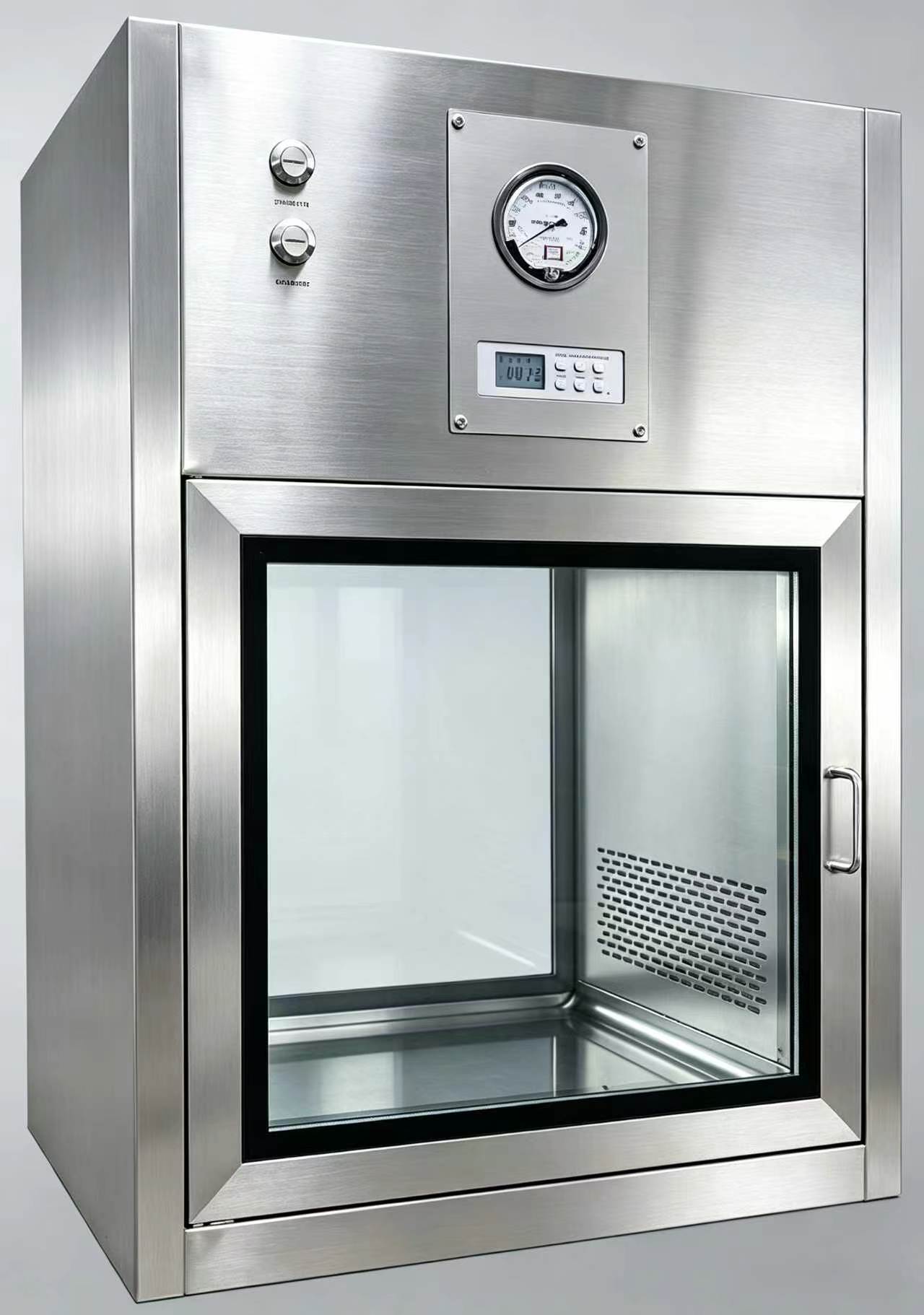

Pass‑through Window
Pass‑through windows are auxiliary equipment for clean rooms. They are mainly used for transferring small‑size items between clean rooms, or between clean and non‑clean areas, so as to reduce door‑opening frequency of clean rooms. Pass‑through windows include standard pass‑through windows, clean pass‑through windows, air‑shower pass‑through windows, etc.
Specifications for Clean Pass‑through Window
- Material: 304 stainless steel; integral internal rounded‑corner structure for easy cleaning.
- Equipped with PAO injection port and test port with 304‑stainless‑steel quick‑connect fittings.

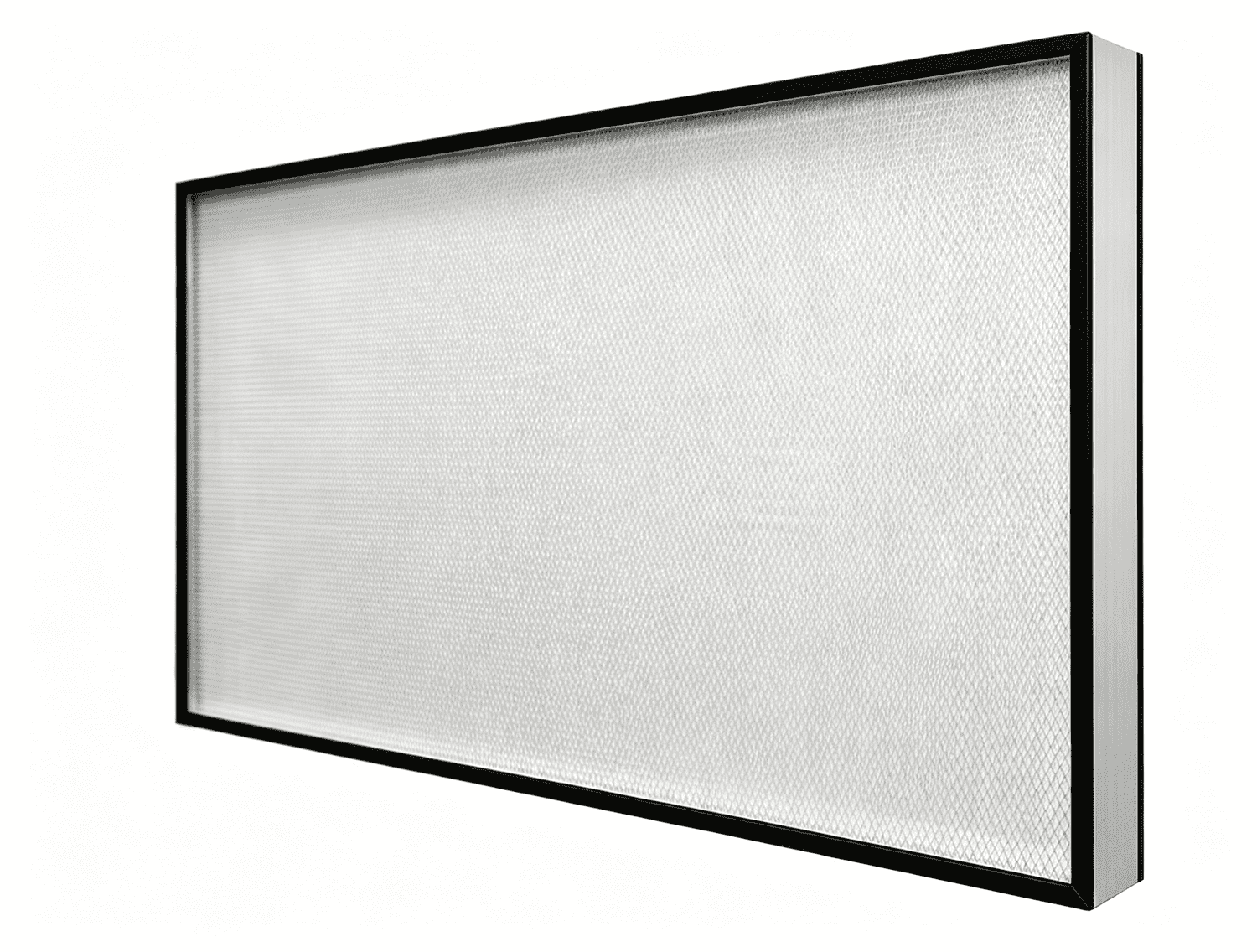

- Fitted with H14 gel‑sealed HEPA filter and a differential pressure gauge for the HEPA filter.
- Built‑in UV germicidal lamp. The sterilization duration is adjustable, with sterilization timing and cumulative runtime functions. Users may configure whether the UV lamp starts simultaneously with the fan.
- Self‑developed LCD panel controller. Magnetic interlock for the two doors. Both automatic and manual operation modes are available for user configuration. Multiple configurable functions are supported under automatic mode, together with time & function display and call‑alert function.
- Optional auto‑start fan‑blowing mode upon door‑closing, configurable by users.
- Recessed‑mount doors; double‑layer tempered glass with black edge sealing, with desiccant fitted.
- Fan: custom‑designed dedicated fan; blowing duration adjustable.
- Innovative built‑in PAO test mode to facilitate PAO testing procedures.
- Customization available per special customer requirements.
